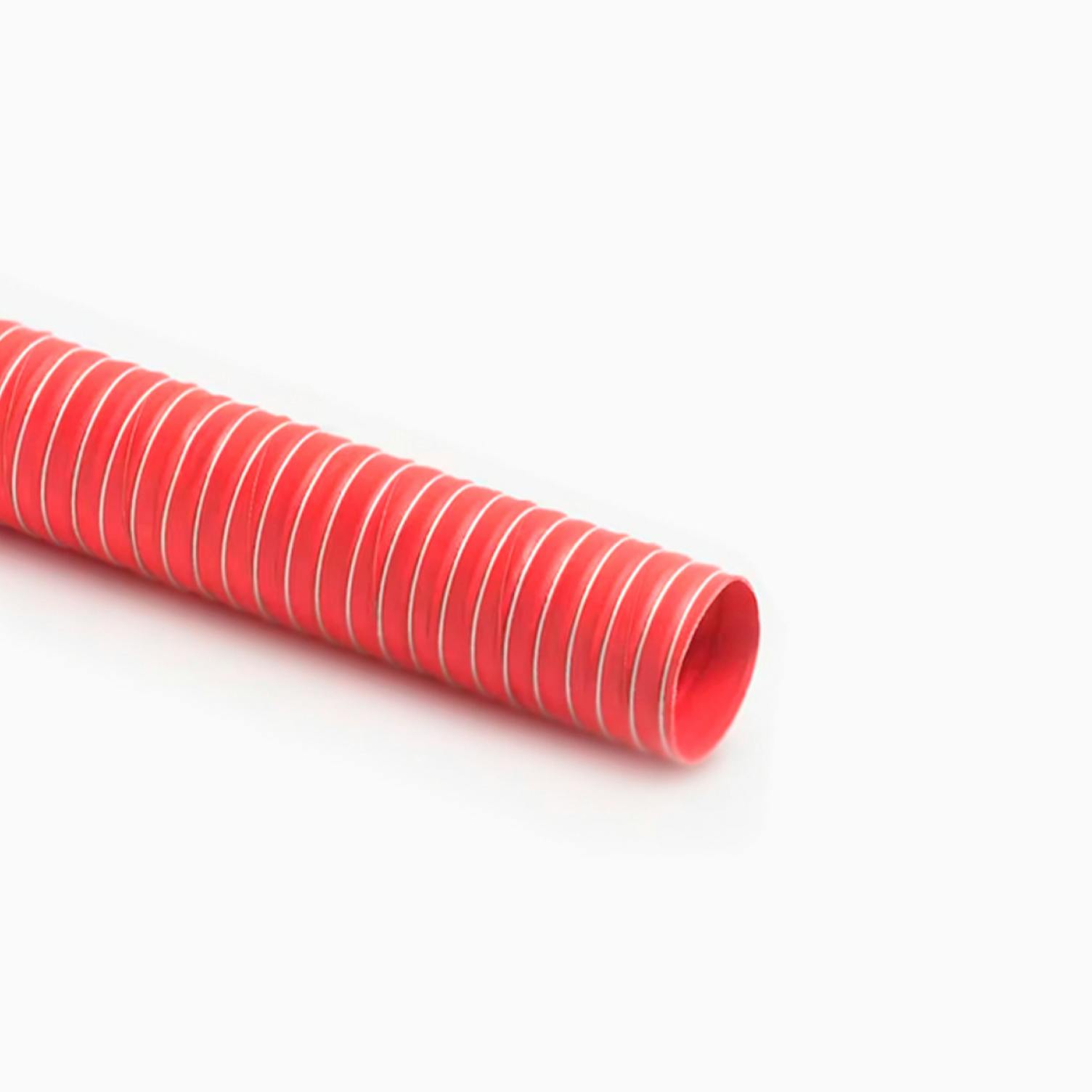

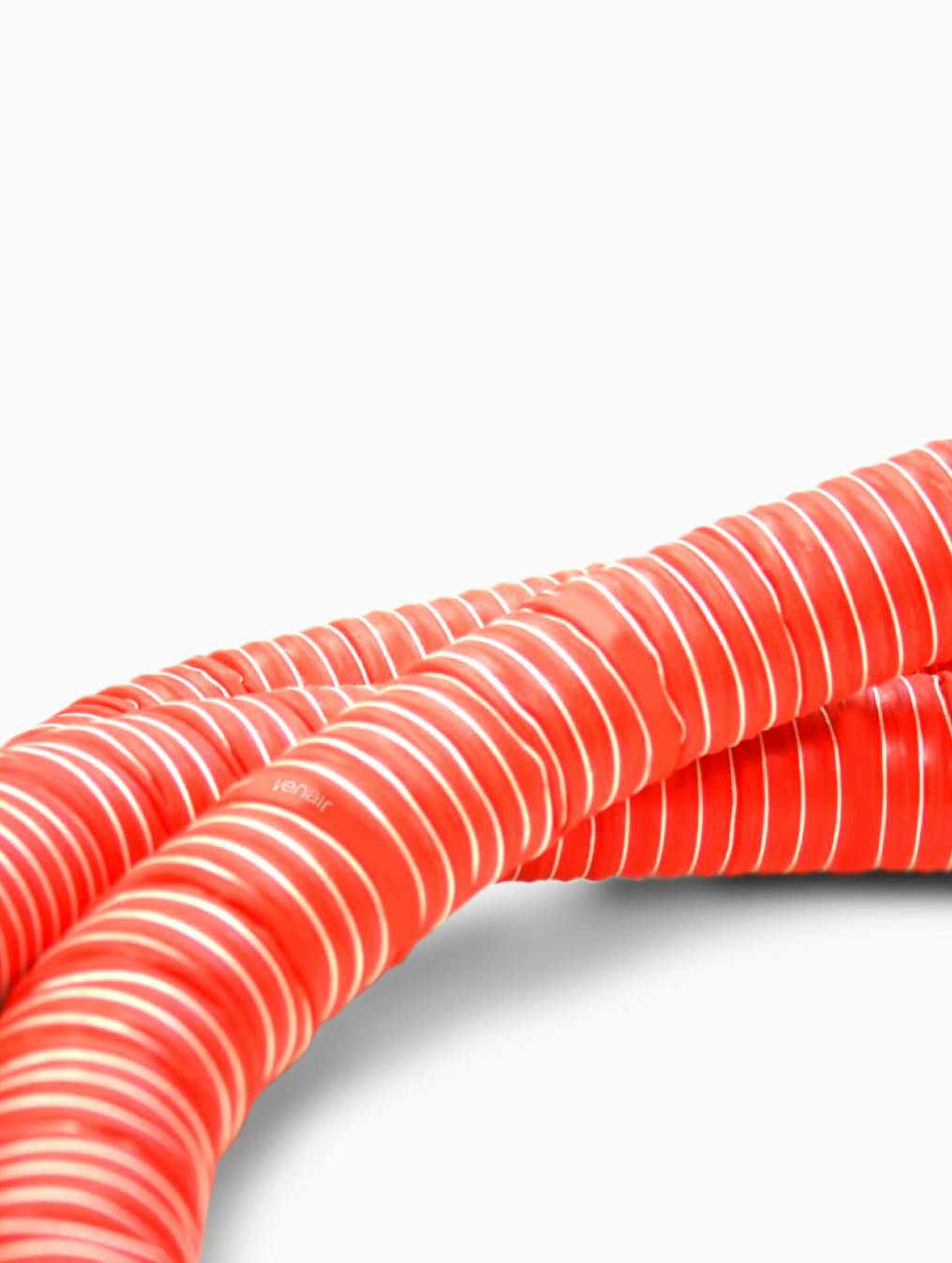

Vena® MTD ECO
Fire and Fumes certified neoprene ducting for air conduction and fumes extraction
HL3 R22 & R23 (EN-45545-2) and V0 (UL-94) classified neoprene ducting for conveying air or gaseous fluids at medium temperatures with high flexibility and high resistance to ageing.
USE CASES
- Air ventilation
- Extraction of engine fumes
- Cooling of electronic units
- Welding gas aspiration.
Especially recommended for air ventilation in the railway industry where the fire & fumes classification is required.
Properties
Outer layer
Neoprene, corrugated and pink.
Reinforcement
Two layer of fiberglass and steel wire spiral.
Inner layer
Neoprene, corrugated and pink.
Temperature
-55°C/+125°C (-67°F /+257 °F)
Manufacturing Length
4m (13’). 6m upon request (19’8’’)
Quality
HL3 R22 & R23 (EN-45545-2) and V0 (UL-94)
The material is in compliance with the RoHS Directive 2002/95/EC and its subsequent amendments including the RoHS2 Directive 2011/65/EU and RoHS3 Directive 2015/863.
